2021 Mondraker Crafty Carbon RR SL 29"

$14,999.99 $11,999.99
Available in store: Check availability

Available in store

Close
29" Wheels | 150mm Rear/ 160 Front | 65.5° HT
Add to cart
Delivery time: 5-7 Business Days
Frame Crafty Stealth Air full Carbon
Wheel Size 29"
Travel 150mm Rear/ 160 Front
Fork Fox 36 29 Float FIT4 EVOL Factory Kashima, 160mm
Rear Shock Fox Float DPS Factory Kashima, 205x65mm
Headset Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Shifter Sram Eagle AXS, 12s
Rear Derailleur Sram X01 Eagle AXS, Type 2.1 roller bearing clutch, cage lock, long carbon cage, 1x12s, X-actuation 1:1
Cassette Sram XG-1295, 10-50T, 12s
Chain Sram GX Eagle, 12s, Powerlock
Chainring Sram X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD
Crankset E.13 TRS Race carbon ebike, 165mm
Brakes Shimano XTR M9120, 4 piston caliper
Rotors Shimano MT910 ICE-Tech 203/203mm CenterLock rotor
Seatpost RockShox Reverb Stealth AXS, diameter 31.6mm, S size: 390x125mm, M size: 440x150mm, L/XL size: 440x170mm
Handlebar Onoff Krypton Carbon 1.0, rise: 25mm, width: 780mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Stem Onoff Krypton FG 30mm, 6061 forged alloy, 31.8mm barbore
Grips Onoff Desert, 1lock-on, 135mm, sizes: S/M L/XL
Saddle FIZIK ANTARES LARGE R1
Pedals N/A
Front Wheel DT Swiss HXC1200 Carbon Spline 29, 30mm (Hub: DT 240, Boost 15x110mm, CenterLock)
Rear Wheel DT Swiss HXC1200 Carbon Spline 29, 30mm (Hub: DT 240, Boost 12x148mm, 24T Ratchet system, CenterLock)
Front Tire Maxxis Rekon 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear Tire Maxxis Rekon 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Drive Unit Bosch Performance Line CX Cruise (25Km/h) GEN4
Battery Bosch Powertube 625Wh
Display Bosch Kiox
Extras N/A
Sizes S, M, L, XL
FROM THE MANUFACTURER
The roar of a tire at the limit. Perfecting bike set up so you, machine and trail flow together flawlessly: pushing your ride to the next ridge and clawing up impossible crux moves to discover the best descents. It’s how we love to ride at Mondraker. It’s why they are developed Stealth Carbon frames, Forward Geometry handling and e-MTB dedicated Zero Suspension. And now Crafty RR SL Carbon redefines that edge of possible. The ultimate package of technological advantage for the ultimate technical trail performance. Fox Factory suspension, SRAM AXS Wireless drivetrain and dropper, DT Swiss Hybrid HXC 1200 carbon wheelset, and 85Nm of Bosch G4 power assist with a 635Wh integrated battery. Crafty RR SL. Redefine your edge of possible.

FEATURES
Zero Suspension System - is a dual link design with the shock floating between the two suspension links and compressed from both ends. This makes the rear suspension extremely sensitive on small bumps and big hit capable.

Advantages
  • Zero power loss. High pedalling efficiency. The power applied to pedals is transformed to immediate forward motion without any extra compression or extension of the rear shock.
  • Zero pedal kickback. Chain length growth throughout the suspension travel is minimum, so pedalling is as effective and efficient as possible.
  • Zero brake jack. Rear brake forces do not work against suspension forces. The rear shock works supple and freely and absorb impacts without any suspension stiffening caused for the rear brake action.
  • Zero bumps. The most remarkable feature of the system is its excellent suppleness on rough terrain and a completely stable ride when pedalling.

Stealth Carbon - Stealth Air is the most refined and lightest Carbon manufacturing process at Mondraker. Every carbon layer is specifically and carefully applied in each area of the frame with a given and specific purpose that makes the most stylish, evolved and advanced carbon fibre frame in the Mondraker range. Trail chatter is sometimes overlooked, and this is a critical feature specially on a highest quality carbon frameset.

Advantages

  • Cutting-edge signature-style profile carbon industrial design
  • Most refined and lightest Stealth Carbon manufacturing
  • Maximum compliance, trail buzz absorption and stiffness to weight ratio

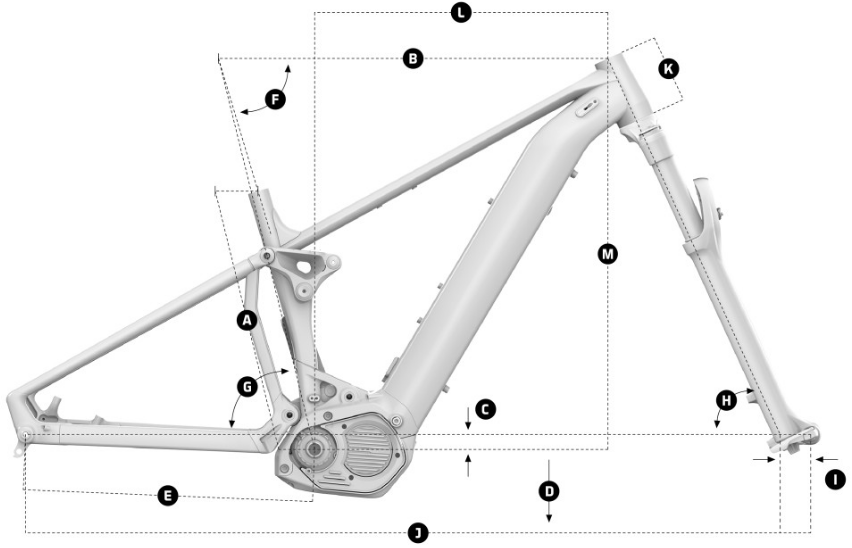

SIZING & GEOMETRY


    S M L XL
A Seattube length 380 420 450 490
B Toptube length 605 625 650 670
C Bottom bracket drop -25
D Bottom bracket height 350
E Chainstay length 455
F Seat tube angle 73.5°
G Effective seattube angle 76°
H Headtube angle 65.5°
I Fork Offset 44
J Wheelbase 1225 1245 1265 1285
K Headtube length 110 110 130 130
L Reach 450 470 490 510
M Stack 622 622 640 640

Measured in mm
